Surphaser 100HSX Overview

With three models and work ranges from 1m to 50m, the Surphaser 100hsx offers sub-millimeter 3D scanning accuracy with scan rates of up to 1 million points per second. Designed to operate in industrial and outdoor environments, the Surphaser 100hsx models are ideal for reverse engineering, dimensional control, BIM, historical preservation, architecture and forensics.
VideosImagesFeaturesBenefitsSuccess Stories
Surphaser 3D Scanner - the most accurate, highest resolution long range 3D scanner
Notice the incredible data quality

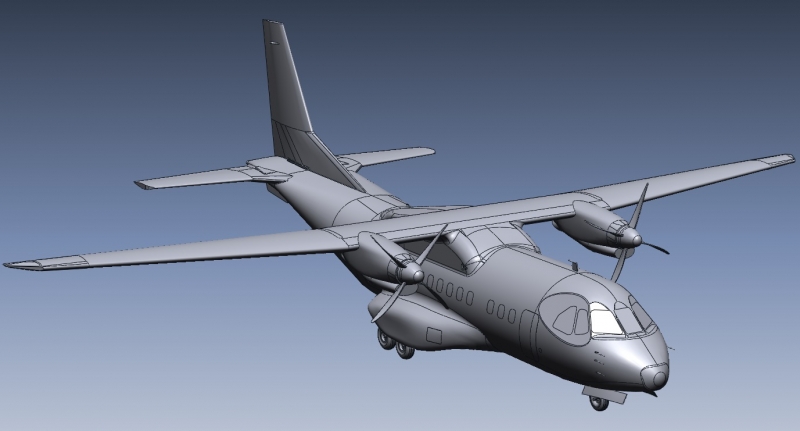

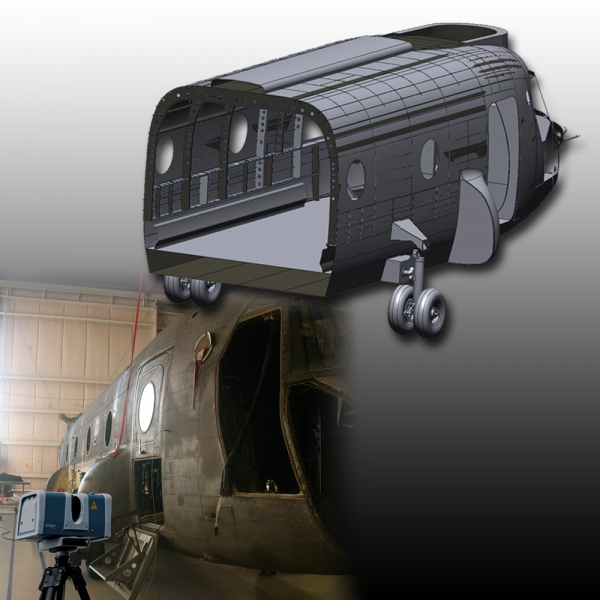

3D CAD model from 3D Scan data

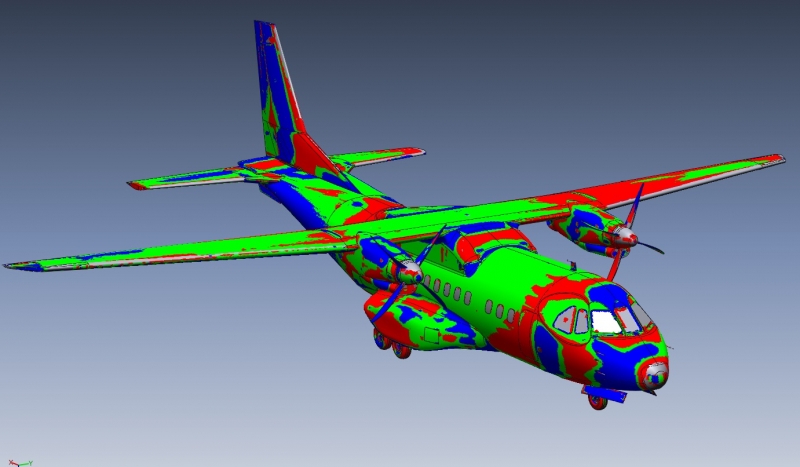

3D scan data compared to the CAD data

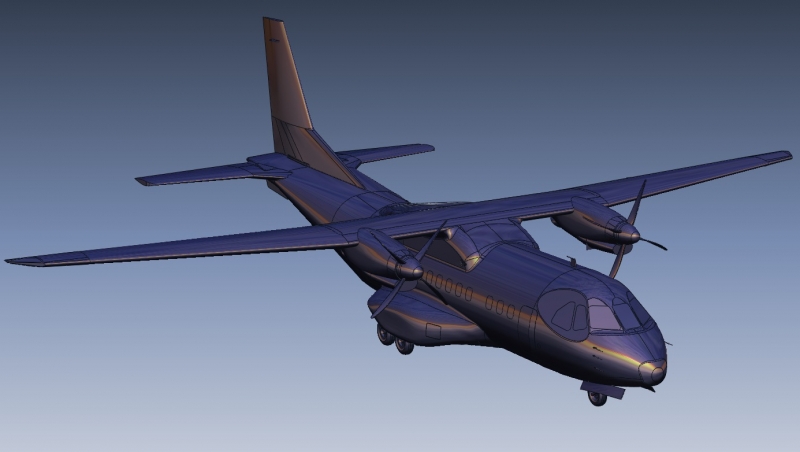

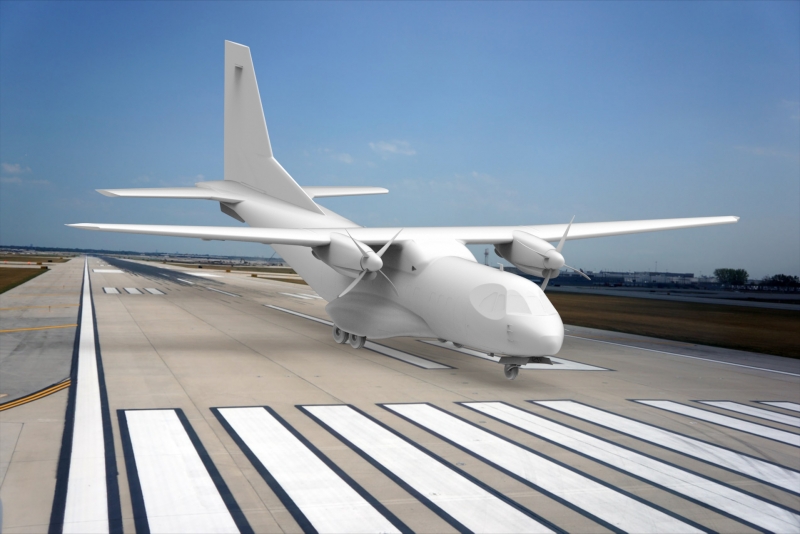

Rendering of CAD data
High quality CAD data

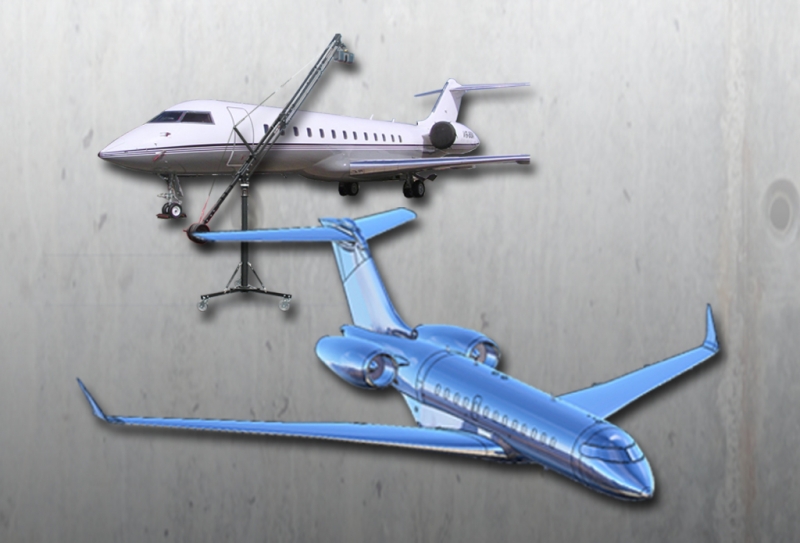

Surphaser can 3D scan upside down

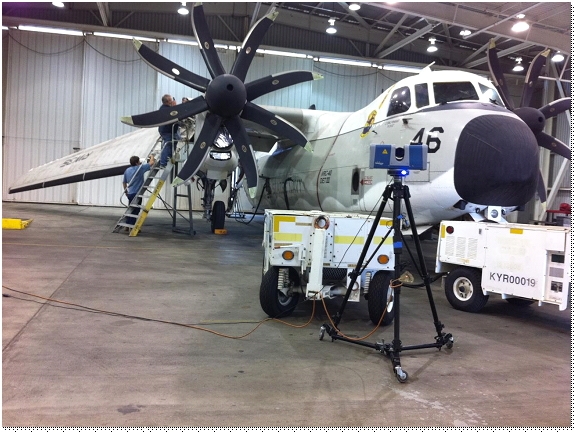

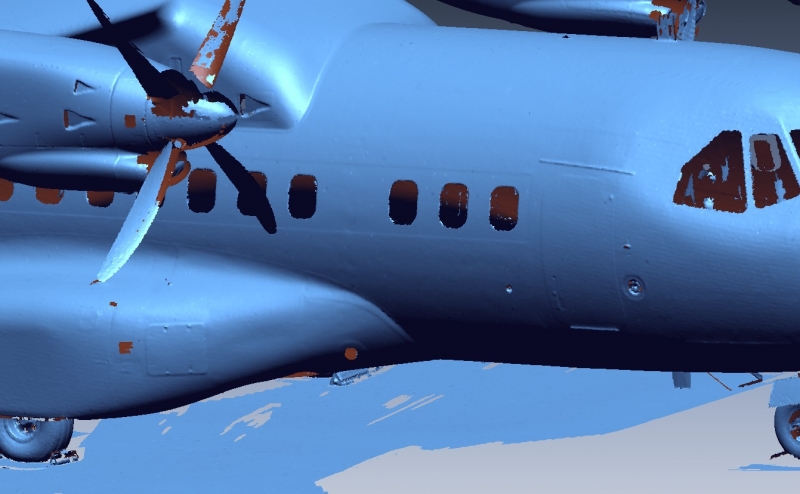

3D Scan an entire aircraft in 1 day
Sub millimeter point spacing

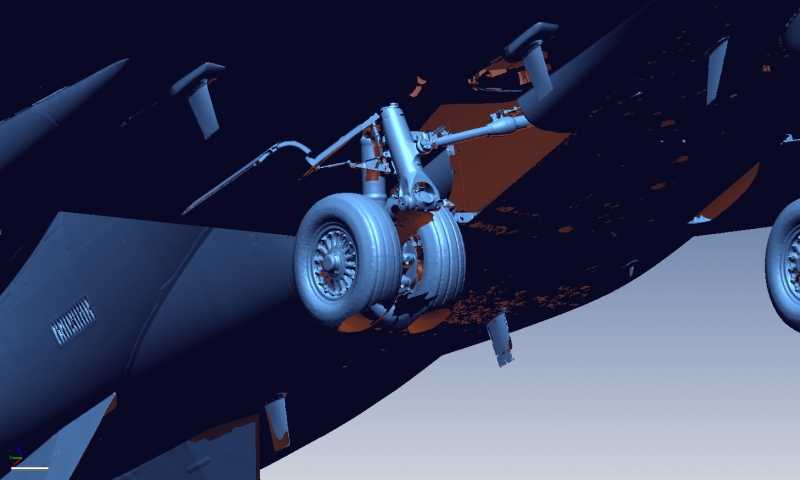

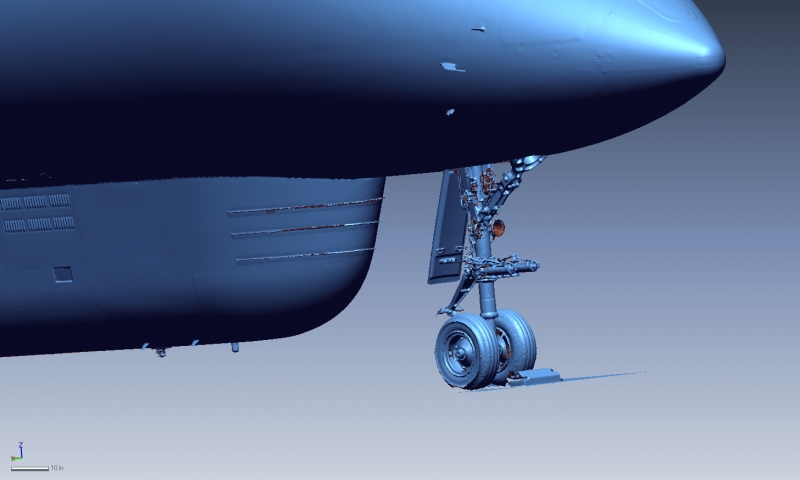

Incredible detail and low noise

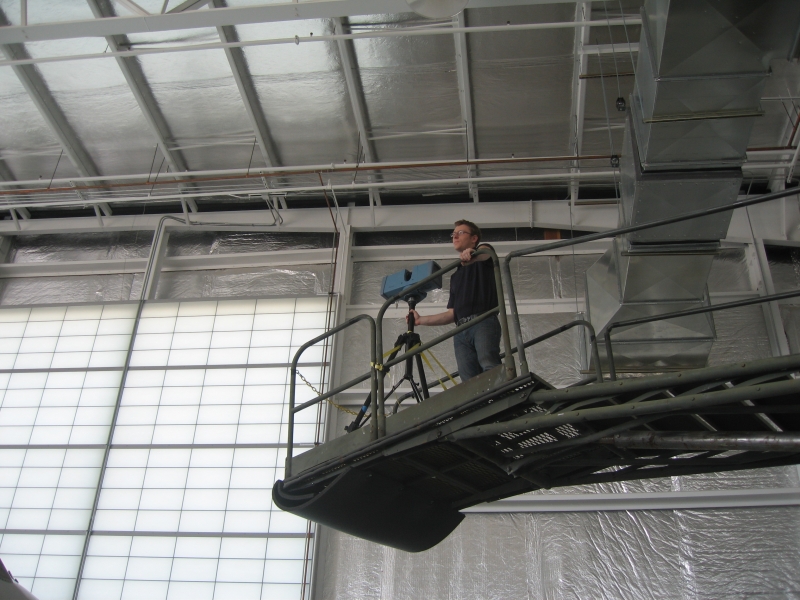

3D Scan from any position and location

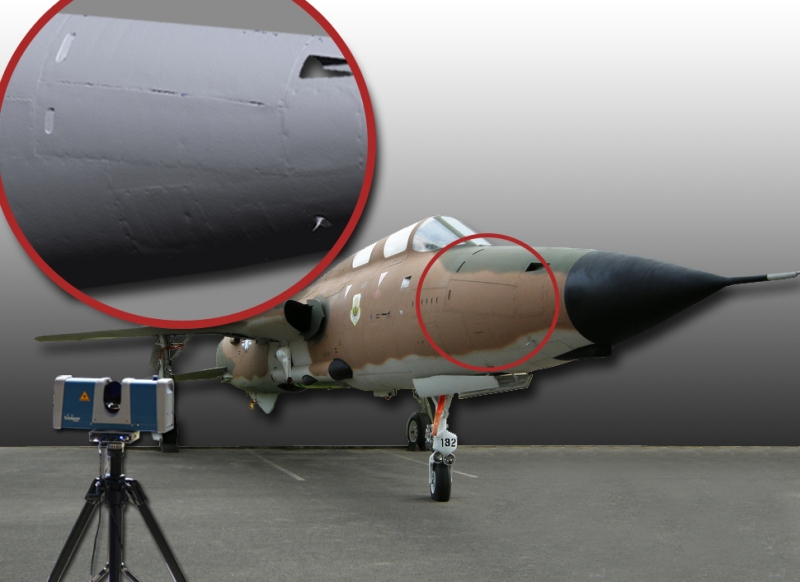

3D Scan dark and shiny objects
3D scan and CAD model creation

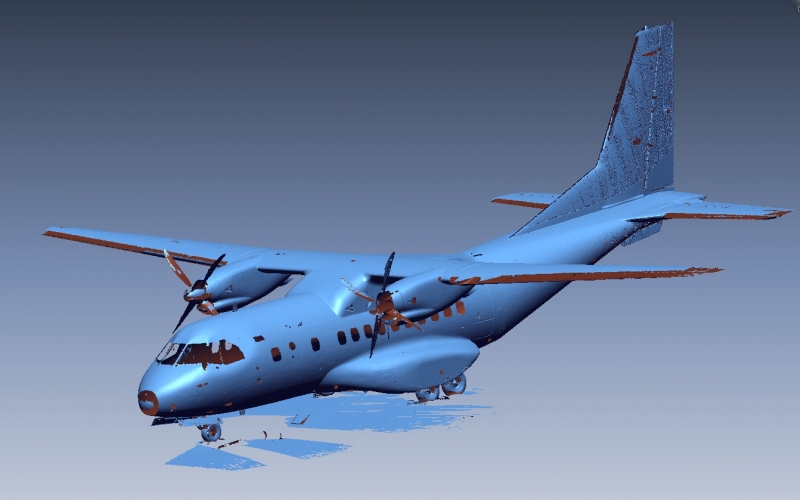

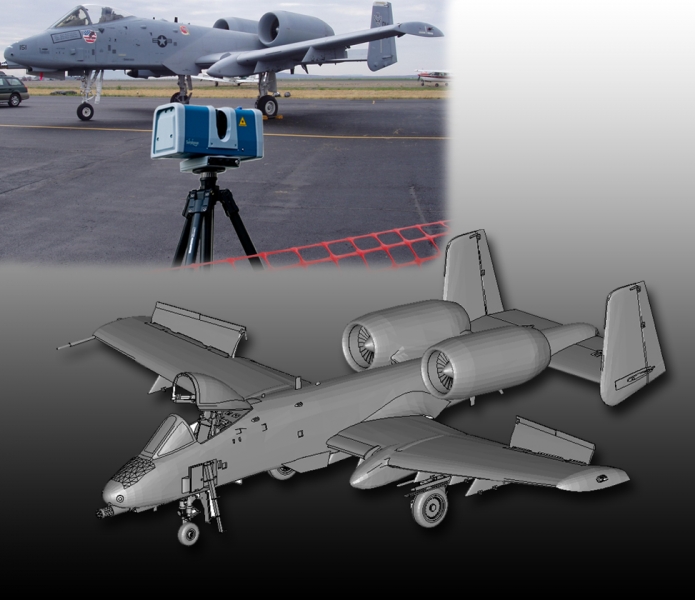

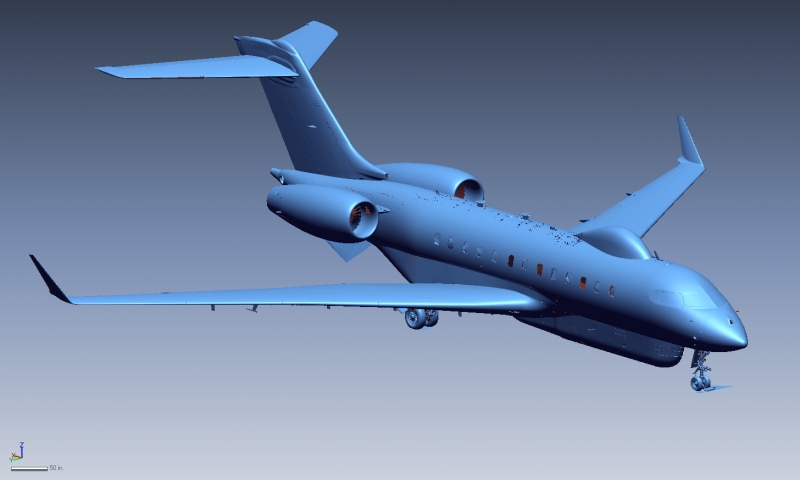

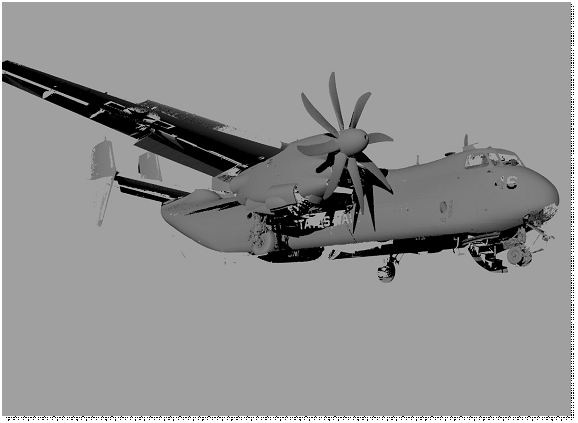

3D scan of an aircraft

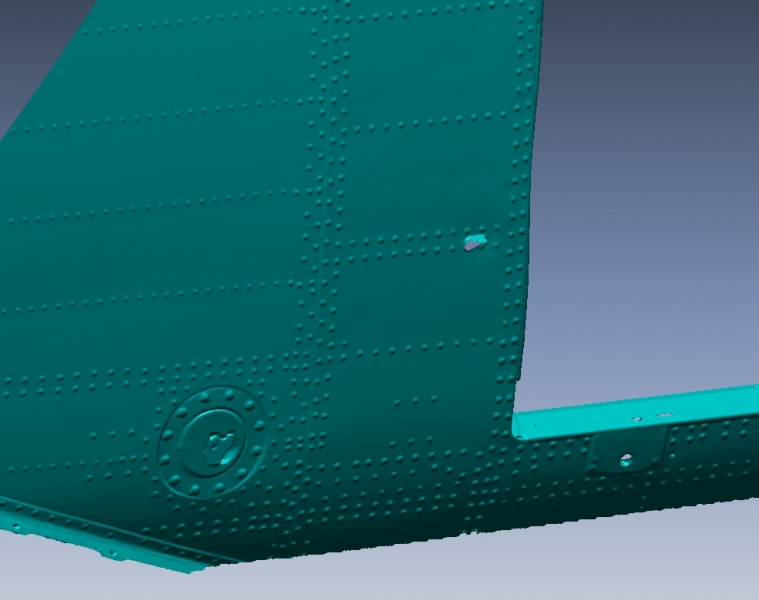

High resolution and detail 3D scanning
High resolution and detail 3D scanning
3D scan in direct sunlight

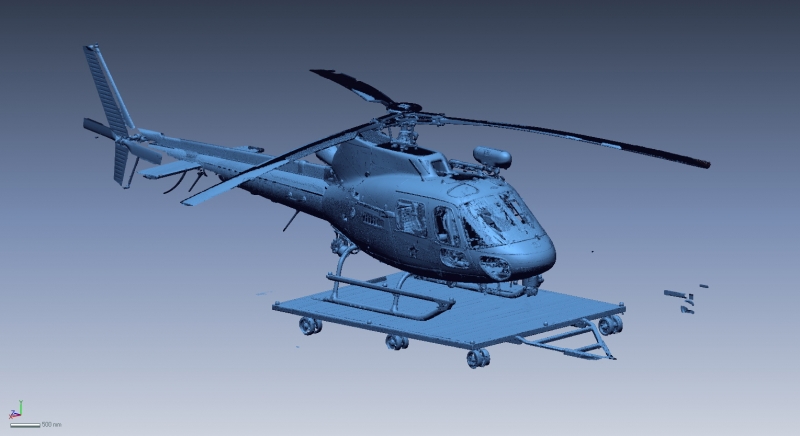

3D scan of a helicopter

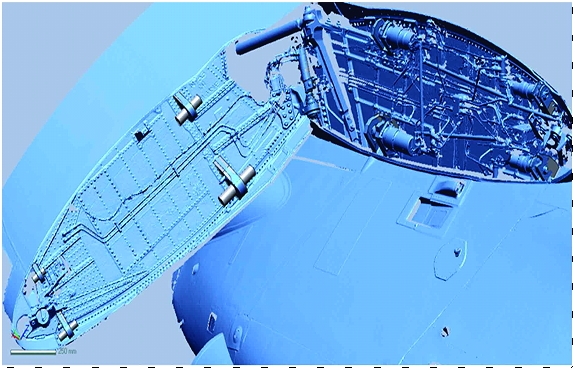

3D scan bare metal

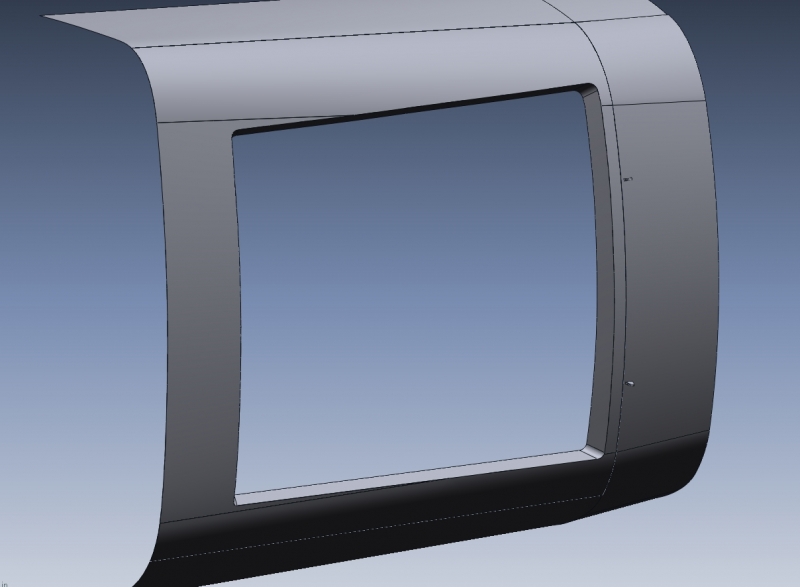

CAD model from scan data of door opening

[Show slideshow]
1 2 ... 4
  • Recommended Work Range: IR HQ = 1 - 35m, IR HS = 1 - 50m , SR = 1 - 7m
  • Weight: 24 Lbs
  • Dimensions: 381 x 218 x 121 mm, 15 x 8.6 4.75”
  • Measurements: 208,000 – 1.2 million per second
  • Ambiguity Range: 90m
  • Ambiguity Uncertainty: 15 arc sec
  • Range Noise @ 90% Reflectivity: IR HQ = .07 mm@ 10 m, IR HS = .16 mm @ 10 m, SR = .024 mm @ 4 m
  • Range Noise @ 10% Reflectivity: IR HQ = .41 mm@ 10 m, IR HS = .3 mm @ 10 m, SR = .088 mm @ 4 m
  • Range Uncertainty: IR HSX HQ = .35 mm@ 5 m, IR HSX HS = .7 mm @ 15 m, SR = < .3 mm @ 3 m
  • Power/Control: 110 AC power, PC hookup, battery & wireless remote control
  • Light Source: Phase shift 685 nm Laser Class 3R
  • Color Option: Optional
  • Sub-millimeter accuracy scanners with scan rate of up to 1 million points per second and scan ranges between 1m and 50m
  • Designed to operate in industrial and outdoors environments
  • Software allows export of clean and accurate data sets into PolyWorks®, Geomagic®, Cyclone®,RealWorks® and other applications for processing
  • Easy to set up and move, fits into optional carrying case approved for cabin luggage for most domestic airlines
  • Optional built-in scan controller and battery adapter
  • Optional camera system with 60 megapixel equivalent color image, includes automatic color data mapping
  • Short, medium & long range configurations
